Resources Modification¶

LIEF allows you to modify (or create) PE resources at different levels:

Directly on the binary tree (
lief.PE.ResourceNode
lief::pe::resources::Node lief.PE.ResourceNode LIEF::PE::ResourceNode
)
Using the
lief.PE.ResourcesManager
lief::pe::resources::Manager lief.PE.ResourcesManager LIEF::PE::ResourcesManager
.

Binary Tree Modifications¶

The resource root node can be accessed using the function:

pe: lief.PE.Binary
rsrc = pe.resources

print(rsrc)

std::unique_ptr<LIEF::PE::Binary> pe;

LIEF::PE::ResourceNode* rsrc = pe->resources();

std::cout << *rsrc << '\n';

let pe: &lief::pe::Binary = some_pe;

let rsrc = pe.resources().unwrap();

println!("{}", &rsrc as &dyn NodeBase);

From this instance, you can use the or functions to add or delete nodes:

pe: lief.PE.Binary

rsrc = pe.resources
assert isinstance(rsrc, lief.PE.ResourceNode)

dir_node = lief.PE.ResourceDirectory(100)
data_node = lief.PE.ResourceData([1, 2, 3])

rsrc.add_child(dir_node).add_child(data_node)

std::unique_ptr<LIEF::PE::Binary> pe;

LIEF::PE::ResourceNode* root = pe->resources();

LIEF::PE::ResourceDirectory dir_node(/*id=*/100);
LIEF::PE::ResourceData data_node(std::vector<uint8_t>{1, 2, 3});

(*root).add_child(dir_node).add_child(data_node);

pe->write("new.exe");

let pe: &mut lief::pe::Binary = some_pe;

let mut root = pe.resources().unwrap();

let mut dir_node = lief::pe::resources::Directory::with_id(100);
let data_node = lief::pe::resources::Data::with_buffer(&[1, 2, 3]);

dir_node.add_child(&Node::Data(data_node));
root.add_child(&Node::Directory(dir_node));

pe.write("new.exe");

This low-level API can be used to modify the tree or change the data of a specific node.

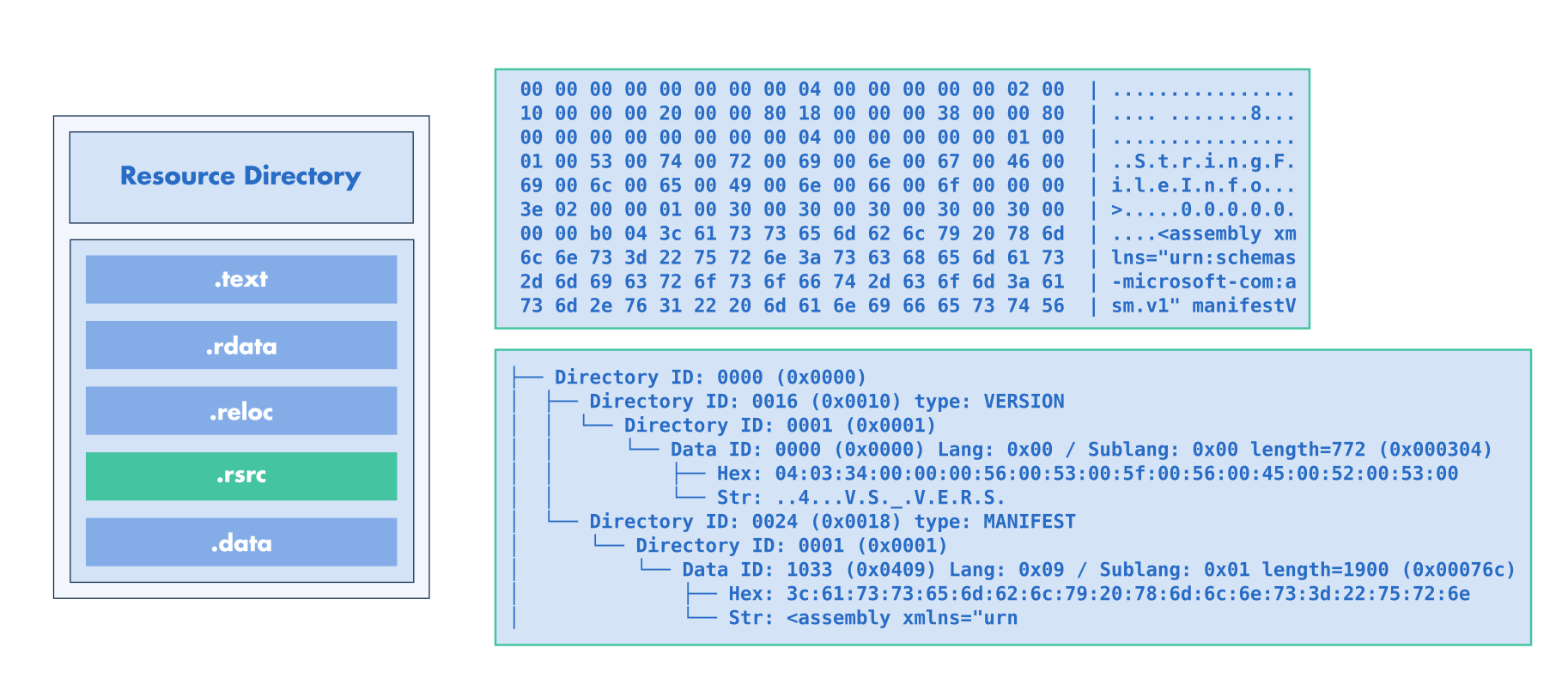

Pretty Printing

You can also print a node to get a formatted representation of the resource tree:

pe: lief.PE.Binary

tree = pe.resources
print(tree)

├── Directory ID: 0000 (0x0000)
│  ├── Directory ID: 0016 (0x0010) type: VERSION
│  │  └── Directory ID: 0001 (0x0001)
│  │      └── Data ID: 0000 (0x0000) Lang: 0x00 / Sublang: 0x00 length=772 (0x000304), offset: 0x1ca0
│  │          ├── Hex: 04:03:34:00:00:00:56:00:53:00:5f:00:56:00:45:00:52:00:53:00
│  │          └── Str: ..4...V.S._.V.E.R.S.
│  └── Directory ID: 0024 (0x0018) type: MANIFEST
│      └── Directory ID: 0001 (0x0001)
│          └── Data ID: 1033 (0x0409) Lang: 0x09 / Sublang: 0x01 length=1900 (0x00076c), offset: 0x1fa4
│              ├── Hex: 3c:61:73:73:65:6d:62:6c:79:20:78:6d:6c:6e:73:3d:22:75:72:6e
│              └── Str: <assembly xmlns="urn

Resources Manager¶

The provides a higher-level API for the resource tree. It can also be used to set or change resource elements such as the manifest:

pe: lief.PE.Binary

manager = pe.resources_manager
assert isinstance(manager, lief.PE.ResourcesManager)

manager.manifest = """
<?xml version="1.0" standalone="yes"?>
<assembly xmlns="urn:schemas-microsoft-com:asm.v1"
          manifestVersion="1.0">
  <trustInfo>
    <security>
      <requestedPrivileges>
         <requestedExecutionLevel level='asInvoker' uiAccess='false'/>
      </requestedPrivileges>
    </security>
  </trustInfo>
</assembly>
"""

pe.write("new.exe")

std::unique_ptr<LIEF::PE::Binary> pe;

result<ResourcesManager> manager = pe->resources_manager();
manager->manifest(R"manifest(
<?xml version="1.0" standalone="yes"?>
<assembly xmlns="urn:schemas-microsoft-com:asm.v1"
          manifestVersion="1.0">
  <trustInfo>
    <security>
      <requestedPrivileges>
         <requestedExecutionLevel level='asInvoker' uiAccess='false'/>
      </requestedPrivileges>
    </security>
  </trustInfo>
</assembly>
)manifest");

pe->write("new.exe");

let pe: &mut lief::pe::Binary = some_pe;

let mut manager = pe.resources_manager().unwrap();

manager.set_manifest(
    r#"
<?xml version="1.0" standalone="yes"?>
<assembly xmlns="urn:schemas-microsoft-com:asm.v1"
          manifestVersion="1.0">
  <trustInfo>
    <security>
      <requestedPrivileges>
         <requestedExecutionLevel level='asInvoker' uiAccess='false'/>
      </requestedPrivileges>
    </security>
  </trustInfo>
</assembly>
"#,
);

pe.write("new.exe");

Resource Tree Transfer between Binaries¶

LIEF can transfer the resource tree from one binary to another. This operation can be performed using the function:

from_pe: lief.PE.Binary
to_pe: lief.PE.Binary

resources = from_pe.resources
assert isinstance(resources, lief.PE.ResourceNode)

to_pe.set_resources(resources)
to_pe.write("new.exe")

std::unique_ptr<LIEF::PE::Binary> from;
std::unique_ptr<LIEF::PE::Binary> to;

to->set_resources(*from->resources());

to->write("new.exe");

to_pe.set_resources(&from_pe.resources().unwrap());
