LIEF::PE::ResourceDialog::Item Class Reference

This class represents an element of the dialog. It can be for instance, a button, or a caption. More...

#include <ResourceDialog.hpp>

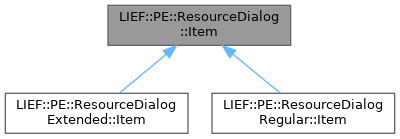

Inheritance diagram for LIEF::PE::ResourceDialog::Item:

Public Types
enum class	WINDOW_CLASS : uint32_t {   BUTTON = 0x0080 , EDIT = 0x0081 , STATIC = 0x0082 , LIST_BOX = 0x0083 ,   SCROLL_BAR = 0x0084 , COMBO_BOX = 0x0085 }

Public Member Functions
	Item ()=default
	Item (const Item &)=default
Item &	operator= (const Item &)=default
	Item (Item &&)=default
Item &	operator= (Item &&)=default
uint32_t	style () const
	The style of the control. This can be a combination of WINDOW_STYLES or CONTROL_STYLES.
uint32_t	extended_style () const
	The extended styles for a window. This member is not used to create controls in dialog boxes, but applications that use dialog box templates can use it to create other types of windows.
int32_t	id () const
	The control identifier.
bool	has (WINDOW_STYLES style) const
	Check if this item has the given WINDOW_STYLES.
bool	has (CONTROL_STYLES style) const
	Check if this item has the given CONTROL_STYLES.
std::vector< WINDOW_STYLES >	window_styles () const
	List of WINDOW_STYLES used by this item.
std::vector< CONTROL_STYLES >	control_styles () const
	List of CONTROL_STYLES used by this item.
int16_t	x () const
	The x-coordinate, in dialog box units, of the upper-left corner of the control. This coordinate is always relative to the upper-left corner of the dialog box's client area.
int16_t	y () const
	The y-coordinate, in dialog box units, of the upper-left corner of the control. This coordinate is always relative to the upper-left corner of the dialog box's client area.
int16_t	cx () const
	The width, in dialog box units, of the control.
int16_t	cy () const
	The height, in dialog box units, of the control.
Item &	style (uint32_t value)
Item &	extended_style (uint32_t value)
Item &	x (int16_t value)
Item &	y (int16_t value)
Item &	cx (int16_t value)
Item &	cy (int16_t value)
Item &	id (int32_t value)
Item &	data (std::vector< uint8_t > creation_data)
Item &	clazz (std::u16string title)
Item &	clazz (uint16_t ord)
Item &	title (std::u16string value)
Item &	title (uint16_t ord)
const ordinal_or_str_t &	clazz () const
	Window class of the control. This can be either: a string that specifies the name of a registered window class or an ordinal value of a predefined system class.
const ordinal_or_str_t &	title () const
	Title of the item which can be either: a string that specifies the initial text or an ordinal value of a resource, such as an icon, in an executable file.
span< const uint8_t >	creation_data () const
	Creation data that is passed to the control's window procedure.
span< uint8_t >	creation_data ()
virtual	~Item ()=default
virtual std::string	to_string () const =0

Detailed Description

This class represents an element of the dialog. It can be for instance, a button, or a caption.

This class is inherited by the regular or extended dialog's item:

• ResourceDialogRegular::Item
• ResourceDialogExtended::Item

Member Enumeration Documentation

WINDOW_CLASS

enum class LIEF::PE::ResourceDialog::Item::WINDOW_CLASS : uint32_t

strong

Enumerator
BUTTON
EDIT
STATIC
LIST_BOX
SCROLL_BAR
COMBO_BOX

Constructor & Destructor Documentation

Item() [1/3]

LIEF::PE::ResourceDialog::Item::Item ( )

default

Referenced by clazz(), clazz(), cx(), cy(), data(), extended_style(), id(), Item(), Item(), operator<<, operator=(), operator=(), style(), title(), title(), x(), and y().

Item() [2/3]

LIEF::PE::ResourceDialog::Item::Item ( const Item & )

default

References Item().

Item() [3/3]

LIEF::PE::ResourceDialog::Item::Item ( Item && )

default

References Item().

~Item()

virtual LIEF::PE::ResourceDialog::Item::~Item ( )

virtualdefault

Reimplemented in LIEF::PE::ResourceDialogExtended::Item, and LIEF::PE::ResourceDialogRegular::Item.

Member Function Documentation

clazz() [1/3]

const ordinal_or_str_t & LIEF::PE::ResourceDialog::Item::clazz ( ) const

inline

Window class of the control. This can be either: a string that specifies the name of a registered window class or an ordinal value of a predefined system class.

clazz() [2/3]

Item & LIEF::PE::ResourceDialog::Item::clazz ( std::u16string title )

inline

References Item(), make_error_code(), not_found, and title().

clazz() [3/3]

Item & LIEF::PE::ResourceDialog::Item::clazz ( uint16_t ord )

inline

References Item().

control_styles()

std::vector< CONTROL_STYLES > LIEF::PE::ResourceDialog::Item::control_styles

(

)

const

List of CONTROL_STYLES used by this item.

creation_data() [1/2]

span< uint8_t > LIEF::PE::ResourceDialog::Item::creation_data ( )

inline

creation_data() [2/2]

span< const uint8_t > LIEF::PE::ResourceDialog::Item::creation_data ( ) const

inline

Creation data that is passed to the control's window procedure.

Referenced by data().

cx() [1/2]

int16_t LIEF::PE::ResourceDialog::Item::cx ( ) const

inline

The width, in dialog box units, of the control.

cx() [2/2]

Item & LIEF::PE::ResourceDialog::Item::cx ( int16_t value )

inline

References Item().

cy() [1/2]

int16_t LIEF::PE::ResourceDialog::Item::cy ( ) const

inline

The height, in dialog box units, of the control.

cy() [2/2]

Item & LIEF::PE::ResourceDialog::Item::cy ( int16_t value )

inline

References Item().

data()

Item & LIEF::PE::ResourceDialog::Item::data ( std::vector< uint8_t > creation_data )

inline

References creation_data(), and Item().

extended_style() [1/2]

uint32_t LIEF::PE::ResourceDialog::Item::extended_style ( ) const

inline

The extended styles for a window. This member is not used to create controls in dialog boxes, but applications that use dialog box templates can use it to create other types of windows.

It can take a combination of WINDOW_EXTENDED_STYLES

extended_style() [2/2]

Item & LIEF::PE::ResourceDialog::Item::extended_style ( uint32_t value )

inline

References Item().

has() [1/2]

bool LIEF::PE::ResourceDialog::Item::has ( CONTROL_STYLES style ) const

inline

Check if this item has the given CONTROL_STYLES.

References style().

has() [2/2]

bool LIEF::PE::ResourceDialog::Item::has ( WINDOW_STYLES style ) const

inline

Check if this item has the given WINDOW_STYLES.

References style().

id() [1/2]

int32_t LIEF::PE::ResourceDialog::Item::id ( ) const

inline

The control identifier.

id() [2/2]

Item & LIEF::PE::ResourceDialog::Item::id ( int32_t value )

inline

References Item().

operator=() [1/2]

Item & LIEF::PE::ResourceDialog::Item::operator= ( const Item & )

default

References Item().

operator=() [2/2]

Item & LIEF::PE::ResourceDialog::Item::operator= ( Item && )

default

References Item().

style() [1/2]

uint32_t LIEF::PE::ResourceDialog::Item::style ( ) const

inline

The style of the control. This can be a combination of WINDOW_STYLES or CONTROL_STYLES.

Referenced by has(), and has().

style() [2/2]

Item & LIEF::PE::ResourceDialog::Item::style ( uint32_t value )

inline

References Item().

title() [1/3]

const ordinal_or_str_t & LIEF::PE::ResourceDialog::Item::title ( ) const

inline

Title of the item which can be either: a string that specifies the initial text or an ordinal value of a resource, such as an icon, in an executable file.

title() [2/3]

Item & LIEF::PE::ResourceDialog::Item::title ( std::u16string value )

inline

References Item(), make_error_code(), and not_found.

Referenced by clazz().

title() [3/3]

Item & LIEF::PE::ResourceDialog::Item::title ( uint16_t ord )

inline

References Item().

to_string()

virtual std::string LIEF::PE::ResourceDialog::Item::to_string ( ) const

pure virtual

Implemented in LIEF::PE::ResourceDialogExtended::Item, and LIEF::PE::ResourceDialogRegular::Item.

Referenced by operator<<.

window_styles()

std::vector< WINDOW_STYLES > LIEF::PE::ResourceDialog::Item::window_styles

(

)

const

List of WINDOW_STYLES used by this item.

x() [1/2]

int16_t LIEF::PE::ResourceDialog::Item::x ( ) const

inline

The x-coordinate, in dialog box units, of the upper-left corner of the control. This coordinate is always relative to the upper-left corner of the dialog box's client area.

x() [2/2]

Item & LIEF::PE::ResourceDialog::Item::x ( int16_t value )

inline

References Item().

y() [1/2]

int16_t LIEF::PE::ResourceDialog::Item::y ( ) const

inline

The y-coordinate, in dialog box units, of the upper-left corner of the control. This coordinate is always relative to the upper-left corner of the dialog box's client area.

y() [2/2]

Item & LIEF::PE::ResourceDialog::Item::y ( int16_t value )

inline

References Item().

---

The documentation for this class was generated from the following file:

• ResourceDialog.hpp
