Mips¶

Instruction¶

class lief.assembly.mips.Instruction¶

Bases: Instruction

This class represents a Mips instruction (including mips64, mips32)

property opcode → lief.assembly.mips.OPCODE¶: The instruction opcode as defined in LLVM

property operands → Iterator[lief.assembly.mips.Operand | None]¶: Iterator over the operands of the current instruction

Opcodes¶

See: lief.assembly.mips.OPCODE

Operands¶

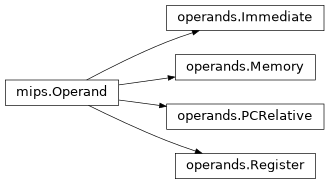

class lief.assembly.mips.Operand¶

Bases: object

This class represents an operand for a Mips instruction

property to_string → str¶: Pretty representation of the operand

Immediate¶

class lief.assembly.mips.operands.Immediate¶

Bases: Operand

This class represents an immediate operand (i.e. a constant)

For instance:

addiu $4, $5, 8
              |
              +---> Immediate(8)

property value → int¶: The constant value wrapped by this operand

Register¶

class lief.assembly.mips.operands.Register¶

Bases: Operand

This class represents a register operand.

For instance:

move $4, $5
      |   |
      |   +---------> Register($5)
      |
      +-------------> Register($4)

property value → lief.assembly.mips.REG¶: The effective lief.assembly.mips.REG wrapped by this operand

Memory¶

class lief.assembly.mips.operands.Memory¶

Bases: Operand

This class represents a memory operand.

lw    $4, 8($5)            ldxc1  $f2, $4($7)
       |  | |                      |   |  |
+------+  | +---+          +-------+   |  +-----+
|         |     |          |           |        |
v         v     v          v           v        v
Reg      Disp  Base       Reg         Index    Base

property base → lief.assembly.mips.REG¶

The base register.

For lw $4, 8($5) it would return $5.

property offset → lief.assembly.mips.REG | int | None¶

The addressing offset.

It can be either:

A register (e.g. ldxc1 $f2, $4($7))
A displacement (e.g. lw $4, 8($5))

PCRelative¶

class lief.assembly.mips.operands.PCRelative¶

Bases: Operand

This class represents a PC-relative operand.

bal 0x100
    |
    v
 PC Relative operand

property value → int¶: The effective value that is relative to the current pc register
