12 - ELF Coredump¶

This tutorial introduces the API for analyzing and manipulating ELF coredumps.

Introduction¶

ELF core [1] files provide information about the CPU state and memory state of a program at the time the coredump was generated. The memory state includes a snapshot of all segments mapped into the process’s memory space. The CPU state contains register values from when the core dump was generated.

Coredump files use a subset of ELF structures to store this information. Segments are used for the memory state of the process, while ELF notes (lief.ELF.Note) are used for process metadata (PID, signal, etc.). Notably, the CPU state is stored in a note with a specific type.

Here is an overview of the coredump layout:

For more details about coredump internal structures, refer to the following blog post: Anatomy of an ELF core file.

Coredump Analysis¶

Since core files are effectively ELF files, they can be opened using the function:

import lief

core = lief.parse("ELF64_AArch64_core_hello.core")

We can iterate over the Segment objects to inspect the memory state of the program:

segments = core.segments
print("Number of segments {}".format(len(segments)))

for segment in segments:
   print(hex(segment.virtual_address))

To resolve the relationship between libraries and segments, we can examine the special note lief.ELF.CoreFile:

nt_core_file = core.get(lief.ELF.Note.TYPE.CORE.FILE)

ELF notes are represented via the main lief.ELF.Note interface. Some notes, such as lief.ELF.CoreFile, expose additional APIs by extending the original lief.ELF.Note.

Note

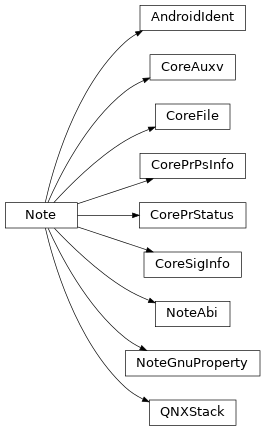

All note details inherit from the base class lief.ELF.Note (or LIEF::ELF::Note).

Specifically, in C++, we must downcast using the classof function:

for (const Note& note : binary->notes()) {
  if (CoreFile::classof(&note)) {
    const auto& nt_core_file = static_cast<const CoreFile&>(note);
  }
}

This is roughly equivalent in Python to:

for note in binary.notes:
    if isinstance(note, lief.ELF.CoreFile):
        print("This is a CoreFile note")

We can use the lief.ELF.CoreFile.files attribute or iterate directly over the lief.ELF.CoreFile object. Both provide access to lief.ELF.CoreFileEntry objects:

for file_entry in nt_core_file:
   print(file_entry)

/data/local/tmp/hello-exe: [0x5580b86000, 0x5580b88000]@0
/data/local/tmp/hello-exe: [0x5580b97000, 0x5580b98000]@0x1000
/data/local/tmp/hello-exe: [0x5580b98000, 0x5580b99000]@0x2000
/system/lib64/libcutils.so: [0x7fb7593000, 0x7fb7595000]@0xf000
/system/lib64/libcutils.so: [0x7fb7595000, 0x7fb7596000]@0x11000
/system/lib64/libnetd_client.so: [0x7fb75fb000, 0x7fb75fc000]@0x2000
/system/lib64/libnetd_client.so: [0x7fb75fc000, 0x7fb75fd000]@0x3000
/system/lib64/libdl.so: [0x7fb7a2e000, 0x7fb7a2f000]@0x1000
/system/lib64/libdl.so: [0x7fb7a2f000, 0x7fb7a30000]@0x2000
/data/local/tmp/liblibhello.so: [0x7fb7b22000, 0x7fb7b2a000]@0xcb000
/data/local/tmp/liblibhello.so: [0x7fb7b2a000, 0x7fb7b2b000]@0xd3000
/system/lib64/libc.so: [0x7fb7c0e000, 0x7fb7c14000]@0xc5000
/system/lib64/libc.so: [0x7fb7c14000, 0x7fb7c16000]@0xcb000
/system/lib64/liblog.so: [0x7fb7c6c000, 0x7fb7c6d000]@0x16000
/system/lib64/liblog.so: [0x7fb7c6d000, 0x7fb7c6e000]@0x17000
/system/lib64/libc++.so: [0x7fb7d6f000, 0x7fb7d77000]@0xe2000
/system/lib64/libc++.so: [0x7fb7d77000, 0x7fb7d78000]@0xea000
/system/lib64/libm.so: [0x7fb7db8000, 0x7fb7db9000]@0x36000
/system/lib64/libm.so: [0x7fb7db9000, 0x7fb7dba000]@0x37000
/system/bin/linker64: [0x7fb7e93000, 0x7fb7f87000]@0
/system/bin/linker64: [0x7fb7f88000, 0x7fb7f8c000]@0xf4000
/system/bin/linker64: [0x7fb7f8c000, 0x7fb7f8d000]@0xf8000

From this output, we can see that the Segment entries of the main executable (/data/local/tmp/hello-exe) are mapped from address 0x5580b86000 to 0x5580b99000.

The register state can also be accessed by looking for the lief.ELF.CorePrStatus note:

for note in core.notes:
   if not isinstance(note, lief.ELF.CorePrStatus):
       continue

   # Both are equivalent
   print(note.pc)
   reg_values = note.register_values
   print(reg_values[lief.ELF.CorePrStatus.Registers.AARCH64.PC.value])

0x5580b86f50
0x5580b86f50

Coredump Manipulation¶

To a certain extent, LIEF enables the modification of coredumps. For instance, we can update register values as follows:

prstatus = core.get(lief.ELF.Note.TYPE.CORE_PRSTATUS)
prstatus.set(lief.ELF.CorePrStatus.Registers.AARCH64.PC, 0xDEADC0DE)

core.write("/tmp/new.core")

When opening /tmp/new.core in GDB, we can observe the modification:

Final word¶

One advantage of a coredump over a raw binary is that relocations and dependencies are already resolved within the coredump.

This API can be used in conjunction with other tools. For example, we could use the Triton API:

to map the coredump into Triton and then utilize its engines for taint analysis and symbolic execution.
