BinaryNinja - DWARF Plugin¶

Export as DWARF¶

BinaryNinja builtin plugin

Binary Ninja already embeds a DWARF export plugin that exposes most of the functionality provided by this plugin. However, this plugin exports additional information, such as stack variables and basic blocks.

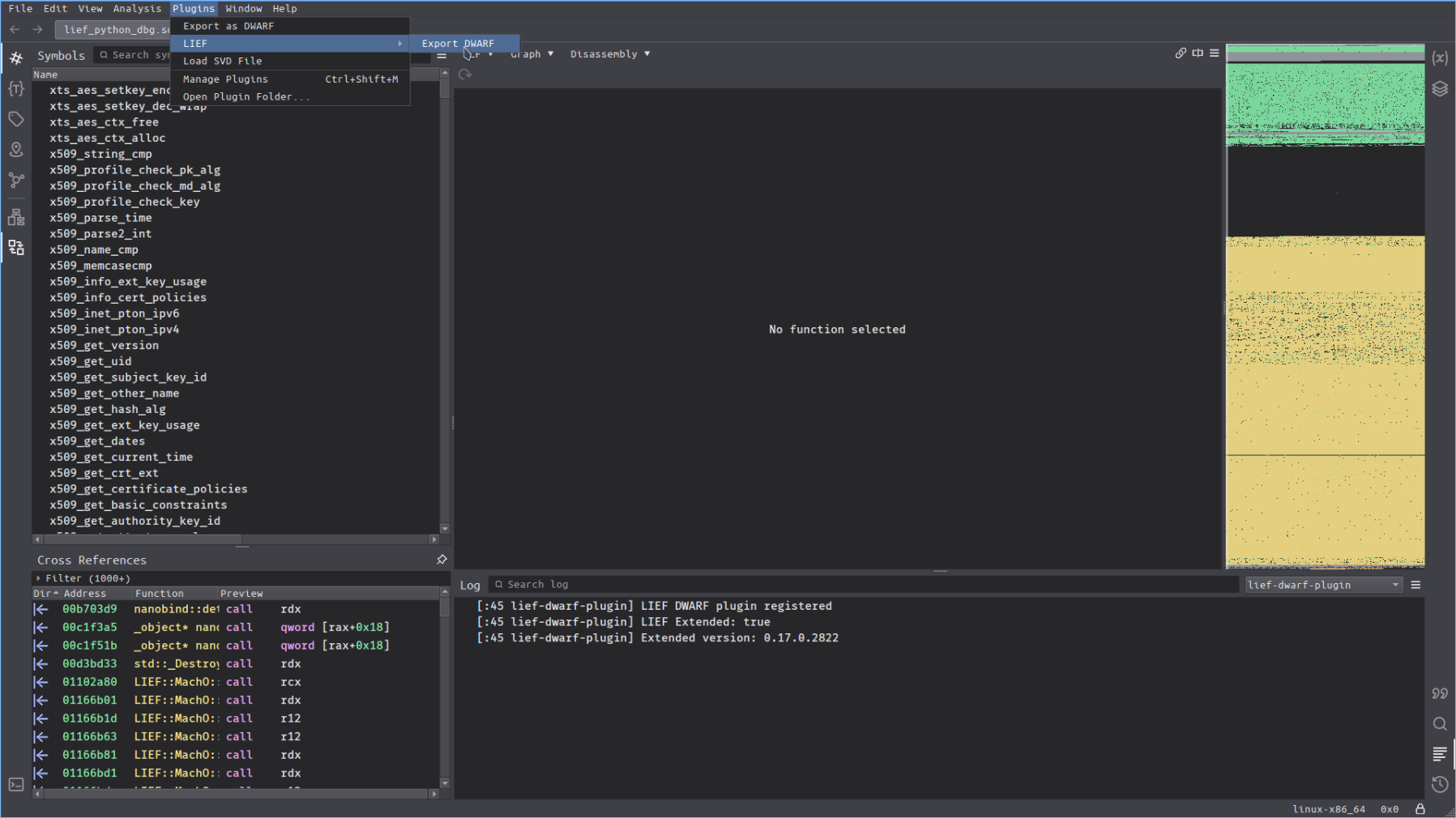

To export DWARF information from a BinaryNinja BinaryView representation, use the menu: Plugins > LIEF > Export as DWARF

Command-line export¶

The standalone lief-tool-dwarf-export-<system>-<architecture> tool exports the saved analysis from a Binary Ninja database into a DWARF file.

For example, on Linux x86-64:

$ lief-tool-dwarf-export-linux-x86_64 input.bndb --output out.dwarf
$ lief-tool-dwarf-export-linux-x86_64 /path/to/input.bndb

The second command writes /path/to/input.dwarf next to the database.

Support & Limitations¶

This extension tries to convert most of the information registered in a BinaryView into DWARF structures, but this support is not exhaustive; here is an overview of what is and is not exported.

BinaryNinja::BinaryView

Function
Data Variables
Types
Comments

BinaryNinja::Function

Name
Address range
Parameters
Type of parameters
Return type
Stack variables
Types of stack variables
Basic Blocks
Comments

BinaryNinja::DataVariable

Name
Type
Address
Comments

BinaryNinja::Type

BNTypeClass::VoidTypeClass
BNTypeClass::BoolTypeClass
BNTypeClass::IntegerTypeClass
BNTypeClass::FloatTypeClass
BNTypeClass::PointerTypeClass
BNTypeClass::PointerTypeClass
BNTypeClass::StructureTypeClass
- BNTypeClass::ClassStructureType
- BNTypeClass::UnionStructureType
- BNTypeClass::StructStructureType
BNTypeClass::EnumerationTypeClass
BNTypeClass::NamedTypeReferenceClass
BNTypeClass::ArrayTypeClass
BNTypeClass::WideCharTypeClass
BNTypeClass::FunctionTypeClass
BNTypeClass::VarArgsTypeClass
BNTypeClass::ValueTypeClass

Any types not mentioned here are not supported.
