Python¶

lief.dwarf.load(path: str | os.PathLike) → lief.dwarf.DebugInfo | None¶: Load the DWARF from the given path

DebugInfo¶

class lief.dwarf.DebugInfo¶

Bases: DebugInfo

This class represents a DWARF debug information. It can embed different compilation units which can be accessed through compilation_units.

This class can be instantiated from lief.Binary.debug_info or lief.dwarf.load()

property compilation_units → Iterator[lief.dwarf.CompilationUnit | None]¶: Iterator on the CompilationUnit embedded in this dwarf

find_function(self, name: str) → lief._lief.dwarf.Function | None¶

find_function(self, addr: int) → lief._lief.dwarf.Function | None

Overloaded function.

find_function(self, name: str) -> Optional[lief._lief.dwarf.Function]

Try to find the function with the given name (mangled or not)

info: lief.dwarf.DebugInfo = ...
if func := info.find_function("_ZNSt6localeD1Ev"):
    print("Found")
if func := info.find_function("std::locale::~locale()"):
    print("Found")

find_function(self, addr: int) -> Optional[lief._lief.dwarf.Function]

Try to find the function at the given virtual address.

find_type(self, name: str) → lief._lief.dwarf.Type | None¶: Try to find the type with the given name.

find_variable(self, addr: int) → lief._lief.dwarf.Variable | None¶

find_variable(self, name: str) → lief._lief.dwarf.Variable | None

Overloaded function.

find_variable(self, addr: int) -> Optional[lief._lief.dwarf.Variable]

Try to find the (static) variable at the given virtual address.
find_variable(self, name: str) -> Optional[lief._lief.dwarf.Variable]

Try to find the variable with the given name. This name can be mangled or not.

CompilationUnit¶

class lief.dwarf.CompilationUnit¶

Bases: object

This class represents a DWARF compilation unit

class Language¶

Bases: object

Languages supported by the DWARF (v5) format. See: https://dwarfstd.org/languages.html

Some languages (like C++11, C++17, ..) have a version (11, 17, …) which is stored in a dedicated attribute: version

class LANG(*values)¶

Bases: Enum

C = 1¶

COBOL = 10¶

CPP = 2¶

D = 8¶

DART = 4¶

FORTRAN = 6¶

JAVA = 9¶

MODULA = 5¶

RUST = 3¶

SWIFT = 7¶

UNKNOWN = 0¶

from_value(arg: int) → lief.dwarf.CompilationUnit.Language.LANG = <nanobind.nb_func object>¶

property lang → lief.dwarf.CompilationUnit.Language.LANG¶: The language itself

property version → int¶: Version of the language (e.g. 17 for C++17)

property compilation_dir → str¶

Return the path to the directory in which the compilation took place for compiling this compilation unit (e.g. /workdir/build)

It returns an empty string if the entry is not present or can’t be resolved.

This value matches the DW_AT_comp_dir attribute.

find_function(self, name: str) → lief._lief.dwarf.Function | None¶

find_function(self, addr: int) → lief._lief.dwarf.Function | None

Overloaded function.

find_function(self, name: str) -> Optional[lief._lief.dwarf.Function]

Try to find the function whose name is given in parameter.
The provided name can be demangled.
find_function(self, addr: int) -> Optional[lief._lief.dwarf.Function]

Try to find the function at the given address

find_variable(self, addr: int) → lief._lief.dwarf.Variable | None¶

find_variable(self, name: str) → lief._lief.dwarf.Variable | None

Overloaded function.

find_variable(self, addr: int) -> Optional[lief._lief.dwarf.Variable]

Try to find the variable at the given address
find_variable(self, name: str) -> Optional[lief._lief.dwarf.Variable]

Try to find the variable with the given name (mangled or not)

property functions → Iterator[lief.dwarf.Function | None]¶

Return an iterator over the functions implemented in this compilation unit.

Note that this iterator only iterates over the functions that have a concrete implementation in the compilation unit.

For instance with this code:

inline const char* get_secret_env() {
  return getenv("MY_SECRET_ENV");
}

int main() {
  printf("%s", get_secret_env());
  return 0;
}

The iterator will only return one function for main since get_secret_env is inlined and thus, its implementation is located in main.

property high_address → int¶: Return the highest virtual address owned by this compilation unit

property imported_functions → Iterator[lief.dwarf.Function | None]¶

Return an iterator over the functions imported in this compilation unit but not implemented.

For instance with this code:

#include <cstdio>
int main() {
  printf("Hello\n");
  return 0;
}

printf is imported from the standard libc so the function is returned by the iterator. On the other hand, main() is implemented in this compilation unit so it is not returned by imported_functions but functions.

property language → lief.dwarf.CompilationUnit.Language¶

Original language of this compilation unit.

This value matches the DW_AT_language attribute.

property low_address → int¶: Return the lowest virtual address owned by this compilation unit.

property name → str¶

Name of the file associated with this compilation unit (e.g. test.cpp) Return an empty string if the name is not found or can’t be resolved

This value matches the DW_AT_name attribute.

property producer → str¶

Information about the program (or library) that generated this compilation unit. For instance, it can output: Debian clang version 17.0.6.

It returns an empty string if the producer is not present or can’t be resolved.

This value matches the DW_AT_producer attribute.

property ranges → list[lief.range_t]¶

Return a list of address ranges owned by this compilation unit.

If the compilation unit owns a contiguous range, it returns a single range.

property size → int¶

Return the size of the compilation unit according to its range of address.

If the compilation is fragmented (i.e. there are some address ranges between the lowest address and the highest that are not owned by the CU), then it returns the sum of all the address ranges owned by this CU.

If the compilation unit is not fragmented, then it basically returns high_address - low_address.

to_decl(self, opt: lief._lief.DeclOpt | None = None) → str¶: Generates a C/C++ definition for the functions defined in this compilation unit

property types → Iterator[lief.dwarf.Type | None]¶: Return an iterator over the different types defined in this compilation unit.

property variables → Iterator[lief.dwarf.Variable | None]¶

Return an iterator over the variables defined in any scope of this compilation unit:

static int A = 1; // Returned by the iterator
static const char* B = "Hello"; // Returned by the iterator

int get() {
  static int C = 2; // Returned by the iterator
  return C;
}

Function¶

class lief.dwarf.Function¶

Bases: object

This class represents a DWARF function which can be associated with either: DW_TAG_subprogram or DW_TAG_inlined_subroutine.

property address → int | None¶: Return the address of the function (DW_AT_entry_pc or DW_AT_low_pc) or None if it’s not available.

property debug_location → lief.debug_location_t¶: Original source code location.

property description → str¶: Description (DW_AT_description) of this function or an empty string

property instructions → Iterator[lief.assembly.Instruction | None]¶: Disassemble the current function by returning an iterator over the lief.assembly.Instruction.

property is_artificial → bool¶: Whether this function is created by the compiler and not present in the original source code.

property is_external → bool¶: Whether the function is defined outside the current compilation unit (DW_AT_external).

property lexical_blocks → Iterator[lief.dwarf.LexicalBlock | None]¶: Iterator over the LexicalBlock owned by this function

property linkage_name → str¶

The name of the function which is used for linking (DW_AT_linkage_name).

This name differs from name as it is usually mangled. The function returns an empty string if the linkage name is not available.

property name → str¶: The name of the function (DW_AT_name)

property parameters → list[lief.dwarf.Parameter | None]¶: Return the list of parameters used by this function (including template parameters)

property ranges → list[lief.range_t]¶: Ranges of virtual addresses owned by this function.

property scope → lief.dwarf.Scope | None¶: Scope in which this function is defined

property size → int¶: Return the size taken by this function in the binary.

property thrown_types → list[lief.dwarf.Type | None]¶

List of exceptions (types) that can be thrown by the function. For instance, given this Swift code:

func summarize(_ ratings: [Int]) throws(StatisticsError) {
  // ...
}

thrown_types returns one element associated with the Type: StatisticsError.

to_decl(self, opt: lief._lief.DeclOpt | None = None) → str¶: Generates a C/C++ definition for this function

property type → lief.dwarf.Type | None¶: Return the Type associated with the return type of this function

property variables → Iterator[lief.dwarf.Variable | None]¶: Return an iterator over the variables (DW_TAG_variable) defined within the scope of this function. This includes regular stack-based variables as well as static ones.

Parameter¶

class lief.dwarf.Parameter¶

Bases: object

This class represents a DWARF parameter which can be either: - A regular function parameter (see: parameters.Formal) - A template type parameter (see: parameters.TemplateType) - A template value parameter (see: parameters.TemplateValue)

class Location¶

Bases: object

This class exposes information about the location of a parameter

class Type(*values)¶

Bases: Enum

REGISTER = 1¶

UNKNOWN = 0¶

property type → lief.dwarf.Parameter.Location.Type¶

class RegisterLoc¶

Bases: Location

This class represents a register location

property id → int¶: DWARF id of the register

property location → lief.dwarf.Parameter.Location | None¶: Location of this parameter. For instance it can be a specific register that is not following the calling convention.

property name → str¶: Name of the parameter

property type → lief.dwarf.Type | None¶: Type of this parameter

Formal Parameter¶

Inheritance diagram of lief._lief.dwarf.parameters.Formal

class lief.dwarf.parameters.Formal¶

Bases: Parameter

This class represents a regular function parameter.

For instance, given this prototype:

int main(int argc, const char** argv);

The function main has two Formal parameters:

argc (lief.dwarf.Parameter.name) typed as int
(Base from lief.dwarf.Parameter.type)
argv (lief.dwarf.Parameter.name) typed as const char**
(Const)

property type → lief.dwarf.Type | None¶

Template Value Parameter¶

Inheritance diagram of lief._lief.dwarf.parameters.TemplateValue

class lief.dwarf.parameters.TemplateValue¶

Bases: Parameter

This class represents a template value parameter.

For instance, given this prototype:

template<int X = 5>
void generic();

The function generic has one TemplateValue parameter: X

Template Type Parameter¶

Inheritance diagram of lief._lief.dwarf.parameters.TemplateType

class lief.dwarf.parameters.TemplateType¶

Bases: Parameter

This class represents a template type parameter.

For instance, given this prototype:

template<class Y>
void generic();

The function generic has one TemplateType parameter: Y

Scope¶

class lief.dwarf.Scope¶

Bases: object

This class materializes a scope in which Function, Variable, Type, … can be defined.

class TYPE(*values)¶

Bases: Enum

CLASS = 2¶

COMPILATION_UNIT = 6¶

FUNCTION = 5¶

NAMESPACE = 4¶

STRUCT = 3¶

UNION = 1¶

UNKNOWN = 0¶

chained(self, sep: str = '::') → str¶: Represent the whole chain of all (parent) scopes using the provided separator. E.g. ns1::ns2::Class1::Struct2::Type.

property name → str¶: Name of the scope. For instance namespace’s name or function’s name.

property parent → lief.dwarf.Scope | None¶: Parent scope (if any).

property type → lief.dwarf.Scope.TYPE¶: The current scope type.

Variable¶

class lief.dwarf.Variable¶

Bases: object

This class represents a DWARF variable which can be owned by a Function or a CompilationUnit.

property address → int | None¶

Address of the variable.

If the variable is static, it returns the virtual address where it is defined. If the variable is stack-based, it returns the relative offset from the frame-base register.

If the address can’t be resolved, it returns None.

property debug_location → lief.debug_location_t¶: The original source location where the variable is defined.

property description → str¶: Description (DW_AT_description) of the variable or an empty string.

property is_constexpr → bool¶: Whether it’s a constexpr variable.

property is_stack_based → bool¶: Whether this variable is allocated on the stack

property linkage_name → str¶

The name of the variable which is used for linking (DW_AT_linkage_name).

This name differs from name as it is usually mangled. The function returns an empty string if the linkage name is not available.

property name → str¶: Name of the variable (usually demangled)

property scope → lief.dwarf.Scope | None¶: Scope in which this variable is defined

property size → int | None¶

Return the size of the variable (or a lief_errors if it can’t be resolved).

This size is defined by the type of the variable.

to_decl(self, opt: lief._lief.DeclOpt | None = None) → str¶: Generates a C/C++ definition for this variable

property type → lief.dwarf.Type | None¶: Return the type of this variable.

LexicalBlock¶

class lief.dwarf.LexicalBlock¶

Bases: object

This class represents a DWARF lexical block (DW_TAG_lexical_block)

property addr → int | None¶: Return the start address of this block

property description → str¶: Return the description associated with this lexical block or an empty string

property high_pc → int | None¶: Return the highest virtual address owned by this block.

property low_pc → int | None¶: Return the lowest virtual address owned by this block.

property name → str¶: Return the name associated with this lexical block or an empty string

property ranges → list[lief.range_t]¶

Return a list of address ranges owned by this block.

If the lexical block owns a contiguous range, it should return a single range.

property size → int¶: Return the size of this block as the difference of the highest address and the lowest address.

property sub_blocks → Iterator[lief.dwarf.LexicalBlock | None]¶: Return an iterator over the sub-LexicalBlock owned by this block.

Type¶

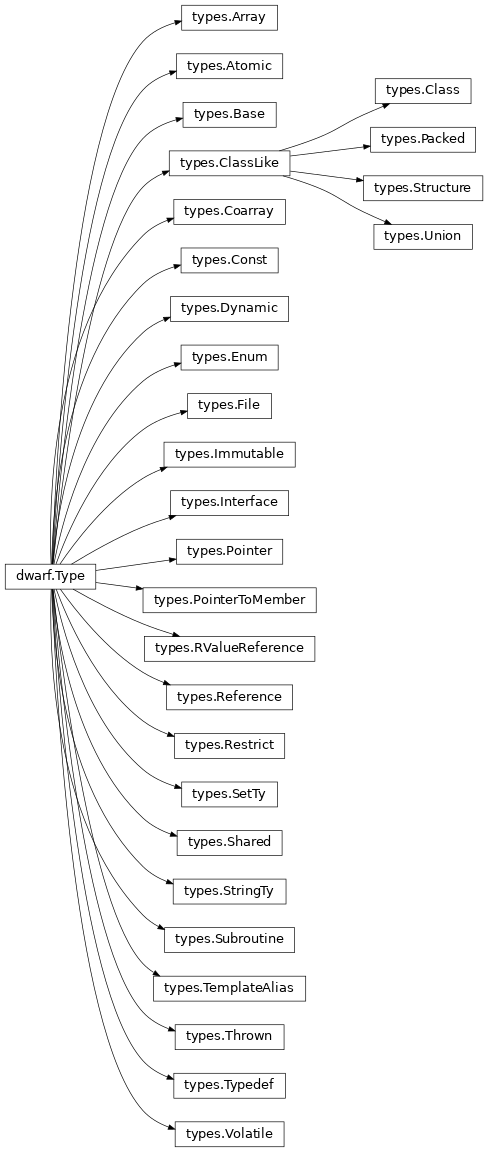

class lief.dwarf.Type¶

Bases: object

This class represents a DWARF Type which includes:

DW_TAG_array_type
DW_TAG_const_type
DW_TAG_pointer_type
DW_TAG_structure_type
DW_TAG_base_type
DW_TAG_class_type
DW_TAG_enumeration_type
DW_TAG_string_type
DW_TAG_union_type
DW_TAG_volatile_type
DW_TAG_unspecified_type
DW_TAG_typedef
DW_TAG_reference_type
DW_TAG_subroutine_type
DW_TAG_ptr_to_member_type
DW_TAG_set_type
DW_TAG_packed_type
DW_TAG_file_type
DW_TAG_thrown_type
DW_TAG_restrict_type
DW_TAG_interface_type
DW_TAG_shared_type
DW_TAG_rvalue_reference_type
DW_TAG_template_alias
DW_TAG_coarray_type
DW_TAG_dynamic_type
DW_TAG_atomic_type
DW_TAG_immutable_type

class KIND(*values)¶

Bases: Enum

ARRAY = 5¶

ATOMIC = 26¶

BASE = 2¶

CLASS = 4¶

COARRAY = 24¶

CONST_KIND = 3¶

DYNAMIC = 25¶

ENUM = 28¶

FILE = 16¶

IMMUTABLE = 27¶

INTERFACE = 20¶

PACKED = 15¶

POINTER = 6¶

POINTER_MEMBER = 14¶

REF = 10¶

RESTRICT = 19¶

RVALREF = 22¶

SET_TYPE = 11¶

SHARED = 21¶

STRING = 12¶

STRUCT = 7¶

SUBROUTINE = 13¶

TEMPLATE_ALIAS = 23¶

THROWN = 17¶

TYPEDEF = 9¶

UNION = 8¶

UNKNOWN = 0¶

UNSPECIFIED = 1¶

VOLATILE = 18¶

property is_unspecified → bool¶: Whether this type is a DW_TAG_unspecified_type

property kind → lief.dwarf.Type.KIND¶: Discriminator for the type’s subclasses

property location → lief.debug_location_t¶: Return the debug location where this type is defined.

property name → str | None¶

Return the type’s name or None if it can’t be resolved.

The name is resolved using either DW_AT_name or DW_AT_picture_string.

property scope → lief.dwarf.Scope | None¶: Scope in which this type is defined

property size → int | None¶

Return the size of the type or None if it can’t be computed.

This size should match the equivalent of sizeof(Type).

to_decl(self, opt: lief._lief.DeclOpt | None = None) → str¶: Generates a C/C++ definition for this type

Array¶

class lief.dwarf.types.Array¶

Bases: Type

This class represents a DW_TAG_array_type

property size_info → lief.dwarf.types.Array.size_info_t¶

Return information about the size of this array.

This size info is usually embedded in a DW_TAG_subrange_type DIE which is represented by the Array.size_info_t class.

class size_info_t¶

Bases: object

Class that wraps information about the dimension of this array

property name → str¶: Name of the index (usually not relevant like __ARRAY_SIZE_TYPE__)

property size → int¶: Size of the array. For instance in uint8_t[3], it returns 3.

property type → lief.dwarf.Type | None¶

Type of the index for this array.

For instance in uint8_t[3] the index type could be set to a size_t.

property underlying_type → lief.dwarf.Type | None¶: The underlying type of this array.

Base¶

class lief.dwarf.types.Base¶

Bases: Type

This class wraps the DW_TAG_base_type type which can be used – for instance – to represent integers or primitive types.

class ENCODING(*values)¶

Bases: Enum

ADDRESS = 7¶

BOOLEAN = 6¶

FLOAT = 5¶

NONE = 0¶

SIGNED = 1¶

SIGNED_CHAR = 2¶

UNSIGNED = 3¶

UNSIGNED_CHAR = 4¶

property encoding → lief.dwarf.types.Base.ENCODING¶: Describe how the base type is encoded and should be interpreted.

ClassLike¶

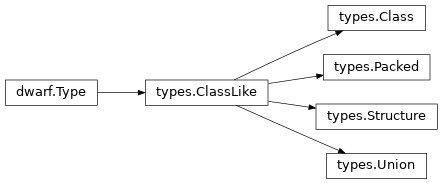

class lief.dwarf.types.ClassLike¶

Bases: Type

This class abstracts a DWARF aggregate (DW_TAG_structure_type, DW_TAG_class_type, DW_TAG_union_type).

class Member¶

Bases: object

This class represents a class/struct/union attribute.

property bit_offset → int | None¶

Offset of the current member in bits in the current struct/union/class

This function differs from offset for aggregates using bit-field declaration:

struct S {
  int flag : 4;
  int opt : 1
};

Usually, offset * 8 == bit_offset

If the offset can’t be resolved it returns None

property bit_size → int | None¶: If the current member is a bit-field, this function returns its size in bits.

property is_declaration → bool¶

property is_external → bool¶

property name → str¶: Name of the member

property offset → int | None¶

Offset of the current member in the struct/union/class

If the offset can’t be resolved it returns None

property type → lief.dwarf.Type | None¶: Type of the current member

find_member(self, offset: int) → lief._lief.dwarf.types.ClassLike.Member | None¶: Try to find the attribute at the given offset

property functions → Iterator[lief.dwarf.Function | None]¶: Iterator over the functions defined by the class-like.

property members → list[lief.dwarf.types.ClassLike.Member]¶: Return a list of all the members defined in this class-like type.

Structure¶

class lief.dwarf.types.Structure¶

Bases: ClassLike

This class represents a DWARF struct type (DW_TAG_structure_type)

Class¶

class lief.dwarf.types.Class¶

Bases: ClassLike

This class represents a DWARF class type (DW_TAG_class_type)

Union¶

class lief.dwarf.types.Union¶

Bases: ClassLike

This class represents a DWARF union type (DW_TAG_union_type)

Packed¶

class lief.dwarf.types.Packed¶

Bases: ClassLike

This class represents a DWARF packed type (DW_TAG_packed_type)

Const¶

class lief.dwarf.types.Const¶

Bases: Type

This class represents a DW_TAG_const_type modifier

property underlying_type → lief.dwarf.Type | None¶: The underlying type being const-ed by this type.

Pointer¶

class lief.dwarf.types.Pointer¶

Bases: Type

This class represents a DW_TAG_pointer_type DWARF type.

property underlying_type → lief.dwarf.Type | None¶: The type pointed by this pointer

Typedef¶

class lief.dwarf.types.Typedef¶

Bases: Type

This class represents a DW_TAG_typedef type

property underlying_type → lief.dwarf.Type | None¶: The type aliased by this typedef

Atomic¶

class lief.dwarf.types.Atomic¶

Bases: Type

This class represents the DW_TAG_atomic_type type

property underlying_type → lief.dwarf.Type | None¶: The underlying type being atomized by this type.

Coarray¶

class lief.dwarf.types.Coarray¶

Bases: Type

This class represents the DW_TAG_coarray_type type

Dynamic¶

class lief.dwarf.types.Dynamic¶

Bases: Type

This class represents the DW_TAG_dynamic_type type

Enum¶

class lief.dwarf.types.Enum¶

Bases: Type

This class represents the DW_TAG_enumeration_type type

class Entry¶

Bases: object

This class represents an enum entry which is essentially composed of a name and its value (integer).

property name → str¶: Enum entry’s name

property value → int | None¶: Enum entry’s value

property entries → list[lief.dwarf.types.Enum.Entry]¶: Entries associated with this enum

find_entry(self, value: int) → lief._lief.dwarf.types.Enum.Entry | None¶: Try to find the entry matching the given value

property underlying_type → lief.dwarf.Type | None¶: The underlying type that is used to encode this enum

File¶

class lief.dwarf.types.File¶

Bases: Type

This class represents the DW_TAG_file_type type

Immutable¶

class lief.dwarf.types.Immutable¶

Bases: Type

This class represents the DW_TAG_immutable_type type

property underlying_type → lief.dwarf.Type | None¶: The underlying type.

Interface¶

class lief.dwarf.types.Interface¶

Bases: Type

This class represents the DW_TAG_interface_type type

PointerToMember¶

class lief.dwarf.types.PointerToMember¶

Bases: Type

This class represents the DW_TAG_ptr_to_member_type type

property containing_type → lief.dwarf.Type | None¶: The type that embeds this member.

property underlying_type → lief.dwarf.Type | None¶: The type of the member referenced by this pointer.

RValueReference¶

class lief.dwarf.types.RValueReference¶

Bases: Type

This class represents the DW_TAG_rvalue_reference_type type

property underlying_type → lief.dwarf.Type | None¶: The underlying type referenced by this rvalue-type.

Reference¶

class lief.dwarf.types.Reference¶

Bases: Type

This class represents the DW_TAG_reference_type type

property underlying_type → lief.dwarf.Type | None¶: The underlying type referenced by this ref-type.

Restrict¶

class lief.dwarf.types.Restrict¶

Bases: Type

This class represents the DW_TAG_restrict_type type

property underlying_type → lief.dwarf.Type | None¶: The underlying type referenced by this restrict-type.

SetTy¶

class lief.dwarf.types.SetTy¶

Bases: Type

This class represents the DW_TAG_set_type type

property underlying_type → lief.dwarf.Type | None¶: The underlying type referenced by this set-type.

Shared¶

class lief.dwarf.types.Shared¶

Bases: Type

This class represents the DW_TAG_shared_type type

property underlying_type → lief.dwarf.Type | None¶: The underlying type referenced by this shared-type.

StringTy¶

class lief.dwarf.types.StringTy¶

Bases: Type

This class represents the DW_TAG_string_type type

Subroutine¶

class lief.dwarf.types.Subroutine¶

Bases: Type

This class represents the DW_TAG_subroutine_type type

property parameters → list[lief.dwarf.Parameter | None]¶: Parameters of this subroutine

property return_type → lief.dwarf.Type | None¶: Return the Type associated with the return type of this function

TemplateAlias¶

class lief.dwarf.types.TemplateAlias¶

Bases: Type

This class represents the DW_TAG_template_alias type

property parameters → list[lief.dwarf.Parameter | None]¶: Parameters associated with the underlying template

property underlying_type → lief.dwarf.Type | None¶: The underlying type aliased by this type.

Thrown¶

class lief.dwarf.types.Thrown¶

Bases: Type

This class represents a DW_TAG_thrown_type

property underlying_type → lief.dwarf.Type | None¶: The underlying type being thrown

Volatile¶

class lief.dwarf.types.Volatile¶

Bases: Type

This class represents a DW_TAG_volatile_type

property underlying_type → lief.dwarf.Type | None¶: The underlying type.

Editor¶

class lief.dwarf.Editor¶

Bases: object

This class exposes the main API to create DWARF information

class ARCH(*values)¶

Bases: Enum

AARCH64 = 3¶

ARM = 4¶

UNKNOWN = 0¶

X64 = 1¶

X86 = 2¶

class FORMAT(*values)¶

Bases: Enum

ELF = 0¶

MACHO = 1¶

PE = 2¶

create(fmt: lief.dwarf.Editor.FORMAT, arch: lief.dwarf.Editor.ARCH) → lief.dwarf.Editor | None = <nanobind.nb_func object>¶

create_compilation_unit(self) → lief._lief.dwarf.editor.CompilationUnit | None¶: Create a new compilation unit

from_binary(bin: lief.Binary) → lief.dwarf.Editor | None = <nanobind.nb_func object>¶

write(self, output: str | os.PathLike) → None¶: Write the DWARF file to the specified output

Editor - CompilationUnit¶

class lief.dwarf.editor.CompilationUnit¶

Bases: object

This class represents an editable DWARF compilation unit

create_array(self, name: str, ty: lief._lief.dwarf.editor.Type, count: int) → lief._lief.dwarf.editor.ArrayType | None¶: Create an array type with the given name, type and size.

create_base_type(self, name: str, size: int, encoding: lief._lief.dwarf.editor.BaseType.ENCODING = ENCODING.NONE) → lief._lief.dwarf.editor.BaseType | None¶: Create a primitive type with the given name and size.

create_enum(self, name: str) → lief._lief.dwarf.editor.EnumType | None¶: Create an enum type (DW_TAG_enumeration_type)

create_function(self, name: str) → lief._lief.dwarf.editor.Function | None¶: Create a new function owned by this compilation unit

create_function_type(self, name: str) → lief._lief.dwarf.editor.FunctionType | None¶: Create a function type with the given name.

create_generic_type(self, name: str) → lief._lief.dwarf.editor.Type | None¶: Create a DW_TAG_unspecified_type type with the given name

create_pointer_type(self, ty: lief._lief.dwarf.editor.Type) → lief._lief.dwarf.editor.PointerType | None¶: Create a pointer on the provided type.

create_structure(self, name: str, kind: lief._lief.dwarf.editor.StructType.TYPE = TYPE.STRUCT) → lief._lief.dwarf.editor.StructType | None¶: Create a struct-like type (struct, class, union) with the given name

create_typedef(self, name: str, ty: lief._lief.dwarf.editor.Type) → lief._lief.dwarf.editor.TypeDef | None¶: Create a typedef with the name provided in the first parameter which aliases the type provided in the second parameter

create_variable(self, name: str) → lief._lief.dwarf.editor.Variable | None¶: Create a new global variable owned by this compilation unit

create_void_type(self) → lief._lief.dwarf.editor.Type | None¶: Create a void type

set_producer(self, arg: str, /) → lief._lief.dwarf.editor.CompilationUnit¶

Set the DW_AT_producer producer attribute.

This attribute aims to inform about the program that generated this compilation unit (e.g. LIEF Extended)

Editor - Function¶

class lief.dwarf.editor.Function¶

Bases: object

This class represents an editable DWARF function (DW_TAG_subprogram)

class Label¶

Bases: object

This class mirrors the DW_TAG_label DWARF tag

class LexicalBlock¶

Bases: object

This class mirrors the DW_TAG_lexical_block DWARF tag

add_block(self, start: int, end: int) → lief._lief.dwarf.editor.Function.LexicalBlock | None¶

add_block(self, range: collections.abc.Sequence[lief._lief.dwarf.editor.Function.range_t]) → lief._lief.dwarf.editor.Function.LexicalBlock | None

Overloaded function.

add_block(self, start: int, end: int) -> Optional[lief._lief.dwarf.editor.Function.LexicalBlock]

Create a sub-block with the given low/high addresses.
If the function managed to create the new block, it returns the newly created block, otherwise it returns the current block
add_block(self, range: collections.abc.Sequence[lief._lief.dwarf.editor.Function.range_t]) -> Optional[lief._lief.dwarf.editor.Function.LexicalBlock]

Create a sub-block with the given range of addresses.
If the function managed to create the new block, it returns the newly created block, otherwise it returns the current block

add_description(self, description: str) → lief._lief.dwarf.editor.Function.LexicalBlock¶: Create a DW_AT_description entry with the description provided in parameter.

add_name(self, name: str) → lief._lief.dwarf.editor.Function.LexicalBlock¶: Create a DW_AT_name entry to associate a name to this entry

class Parameter¶

Bases: object

This class represents a parameter of the current function (DW_TAG_formal_parameter)

assign_register(self, arg: str, /) → lief._lief.dwarf.editor.Function.Parameter¶

assign_register(self, arg: int, /) → lief._lief.dwarf.editor.Function.Parameter

Overloaded function.

assign_register(self, arg: str, /) -> lief._lief.dwarf.editor.Function.Parameter

Assign this parameter to a specific named register.

assign_register(self, arg: int, /) -> lief._lief.dwarf.editor.Function.Parameter

Assign this parameter to the given DWARF register id (e.g. DW_OP_reg0)

add_description(self, description: str) → lief._lief.dwarf.editor.Function¶: Create a DW_AT_description entry with the description provided in parameter.

add_label(self, addr: int, label: str) → lief._lief.dwarf.editor.Function.Label | None¶: Add a label at the given address

add_lexical_block(self, start: int, end: int) → lief._lief.dwarf.editor.Function.LexicalBlock | None¶: Add a lexical block with the given range

add_parameter(self, name: str, type: lief._lief.dwarf.editor.Type) → lief._lief.dwarf.editor.Function.Parameter | None¶: Add a parameter to the current function

create_stack_variable(self, name: str) → lief._lief.dwarf.editor.Variable | None¶: Create a stack-based variable owned by the current function

class range_t(self)¶

class range_t(self, start: int, end: int)

Bases: object

property end → int¶

property start → int¶

set_address(self, addr: int) → lief._lief.dwarf.editor.Function¶: Set the address of this function by defining DW_AT_entry_pc

set_external(self) → lief._lief.dwarf.editor.Function¶: Set the function as external by defining DW_AT_external to true. This means that the function is imported by the current compilation unit.

set_low_high(self, low: int, high: int) → lief._lief.dwarf.editor.Function¶

Set the upper and lower bound addresses for this function. This assumes that the function is contiguous between low and high.

Underneath, the function defines DW_AT_low_pc and DW_AT_high_pc

set_ranges(self, ranges: collections.abc.Sequence[lief._lief.dwarf.editor.Function.range_t]) → lief._lief.dwarf.editor.Function¶

Set the ranges of addresses owned by the implementation of this function by setting the DW_AT_ranges attribute.

This setter should be used for non-contiguous functions.

set_return_type(self, type: lief._lief.dwarf.editor.Type) → lief._lief.dwarf.editor.Function¶: Set the return type of this function

Editor - Variable¶

class lief.dwarf.editor.Variable¶

Bases: object

This class represents an editable DWARF variable which can be scoped by a function or a compilation unit (DW_TAG_variable)

add_description(self, description: str) → lief._lief.dwarf.editor.Variable¶: Create a DW_AT_description entry with the description provided in parameter.

set_addr(self, addr: int) → lief._lief.dwarf.editor.Variable¶

Set the global address of this variable. Setting this address is only relevant in the case of a static global variable. For stack variable, you should use set_stack_offset().

This function sets the DW_AT_location attribute

set_external(self) → lief._lief.dwarf.editor.Variable¶: Mark this variable as imported

set_stack_offset(self, offset: int) → lief._lief.dwarf.editor.Variable¶

Set the stack offset of this variable.

This function sets the DW_AT_location attribute

set_type(self, type: lief._lief.dwarf.editor.Type) → lief._lief.dwarf.editor.Variable¶: Set the type of the current variable

Editor - Type¶

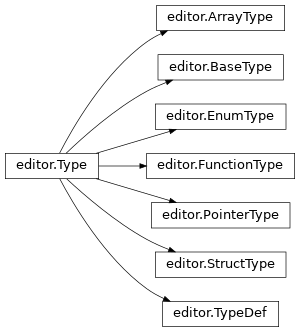

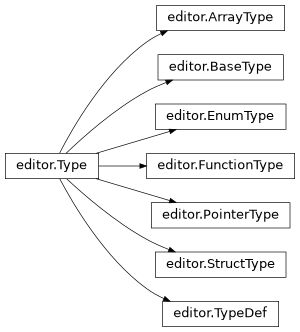

Inheritance diagram of lief._lief.dwarf.editor.PointerType, lief._lief.dwarf.editor.FunctionType, lief._lief.dwarf.editor.BaseType, lief._lief.dwarf.editor.EnumType, lief._lief.dwarf.editor.Type, lief._lief.dwarf.editor.StructType, lief._lief.dwarf.editor.ArrayType, lief._lief.dwarf.editor.TypeDef

class lief.dwarf.editor.Type¶

Bases: object

This class is the base class for any types created when editing DWARF debug info.

A type is owned by a lief.dwarf.editor.CompilationUnit and should be created from this class.

pointer_to(self) → lief._lief.dwarf.editor.PointerType | None¶: Create a pointer type pointing to this type

Editor - PointerType¶

class lief.dwarf.editor.PointerType¶

Bases: Type

This class represents a pointer to another type.

Editor - EnumType¶

class lief.dwarf.editor.EnumType¶

Bases: Type

This class represents an editable enum type (DW_TAG_enumeration_type)

class Value¶

Bases: object

This class represents an enum value

add_value(self, name: str, value: int) → lief._lief.dwarf.editor.EnumType.Value | None¶: Add an enum value by specifying its name and its integer value.

set_size(self, size: int) → lief._lief.dwarf.editor.EnumType¶: Define the number of bytes required to hold an instance of the enumeration (DW_AT_byte_size).

set_underlying_type(self, type: lief._lief.dwarf.editor.Type) → lief._lief.dwarf.editor.EnumType¶: Set the underlying type that is used to encode this enum

Editor - BaseType¶

class lief.dwarf.editor.BaseType¶

Bases: Type

This class represents a primitive type like int, char.

class ENCODING(*values)¶

Bases: Enum

ADDRESS = 1¶

BOOLEAN = 6¶

FLOAT = 7¶

NONE = 0¶

SIGNED = 2¶

SIGNED_CHAR = 3¶

UNSIGNED = 4¶

UNSIGNED_CHAR = 5¶

Editor - ArrayType¶

class lief.dwarf.editor.ArrayType¶

Bases: Type

This class represents an array type.

Editor - FunctionType¶

class lief.dwarf.editor.FunctionType¶

Bases: Type

This class represents a function type (DW_TAG_subroutine_type)

class Parameter¶

Bases: object

This class represents a function’s parameter

add_parameter(self, type: lief._lief.dwarf.editor.Type) → lief._lief.dwarf.editor.FunctionType.Parameter | None¶: Add a parameter

set_return_type(self, type: lief._lief.dwarf.editor.Type) → lief._lief.dwarf.editor.FunctionType¶: Set the return type of this function

Editor - TypeDef¶

class lief.dwarf.editor.TypeDef¶

Bases: Type

This class represents a typedef (DW_TAG_typedef).

Editor - StructType¶

class lief.dwarf.editor.StructType¶

Bases: Type

This class represents a struct-like type which can be:

DW_TAG_class_type
DW_TAG_structure_type
DW_TAG_union_type

class Member¶

Bases: object

This class represents a member of the struct-like

class TYPE(*values)¶

Bases: Enum

CLASS = 0¶

STRUCT = 1¶

UNION = 2¶

add_bitfield(self, name: str, type: lief._lief.dwarf.editor.Type, bitsize: int, bitoffset: int = -1) → lief._lief.dwarf.editor.StructType.Member | None¶: Adds a member to the current struct-like

add_member(self, name: str, type: lief._lief.dwarf.editor.Type, offset: int = -1) → lief._lief.dwarf.editor.StructType.Member | None¶: Adds a member to the current struct-like

set_size(self, size: int) → lief._lief.dwarf.editor.StructType¶

Define the overall size which is equivalent to the sizeof of the current type.

This function defines the DW_AT_byte_size attribute
